Ftth Fiber Cable Tool Device DVP 740 750 760 Fusion Splicing Machine optical fusion splicer

Product Categories

Shenzhen Fibery Photoelectron Technology Ltd.,

Contact Now

Brand Name : DVP

Model Number : DVP 740

MOQ : 1

Price : units 850$/piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000piece per month

Delivery Time : 5-7days

Packaging Details : carton box

Purpose : automatic splicing

Splicing time : 8S

Splice result : 8000

Splicing mode : automatic heating (preheating)

Weight : 3.3kg

warranty : yes

Single package size : 47X28X30 cm

whatsapp : +8615797626358

Contact Now

whatsapp/wechat/skype:+8615797626358

Ftth Fiber Cable Tool Device DVP 740 750 760 Fusion Splicing Machine optical fusion splicer

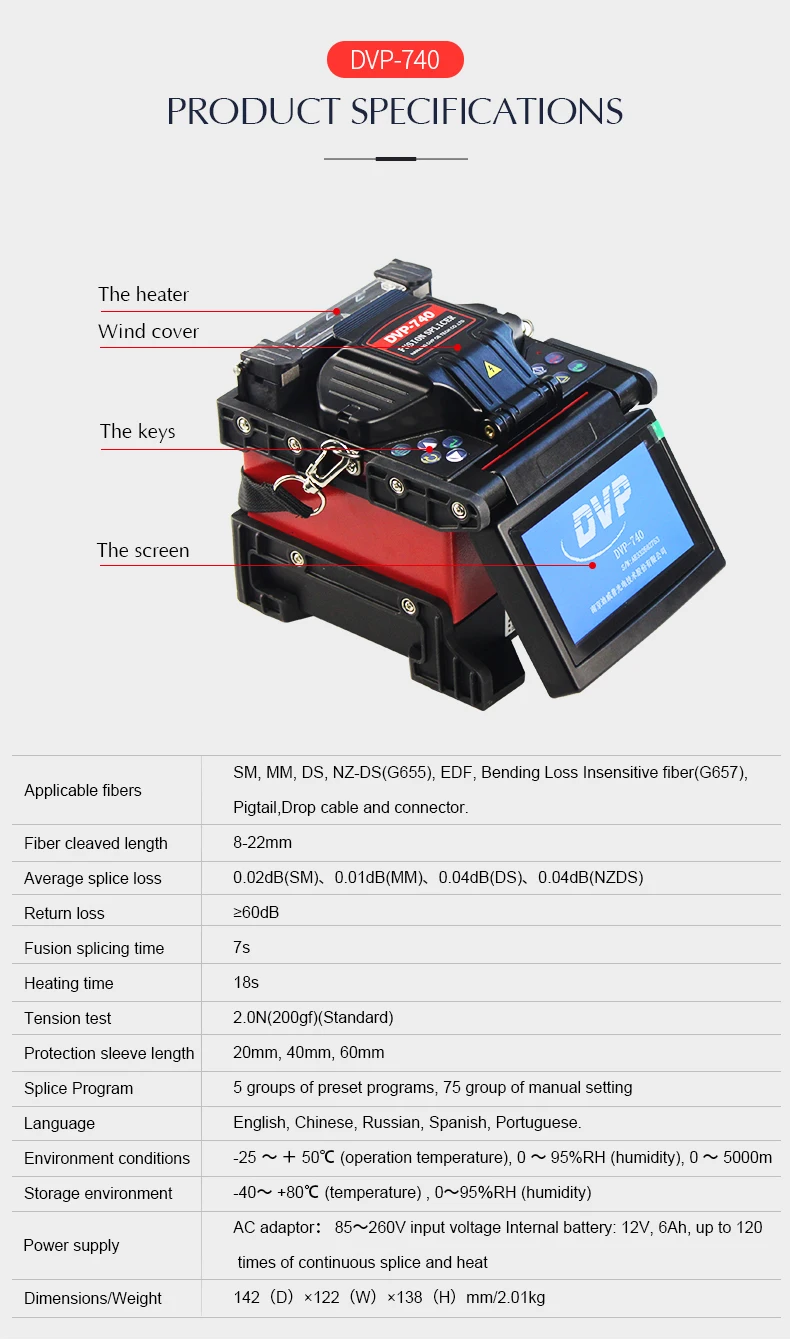

Product Description

Applicable fibers;	SM,MM,DS,NZ-DS,EDF
Cladding diameter:	100 to 150um
Coating diameter:	100 to 1000um
Fiber cleaved length:	8-22mm (standard)
Splicing mode:	Auto & Manual
Average splice loss:	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return loss:	≥ 60dB
Environment conditions:	-25~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment:	-40~ +80°C (temperature) , 0~95%RH (humidity)
Protection sleeve length:	20mm ,40mm ,60mm
Tension test:	2.0N (Standard)
Language:	English, Chinese, Korean, Russian,Spanish etc.
Interface:	RS232 interface & video output
Power supply:	AC adaptor: 85~260V input voltage
	Internal battery: 12V voltage, 10Ah, more than 200 times of continuous splices and heats
	DC adaptor: 12V voltage,optional multipurpose external battery
Dimensions:	142(W)×122(H)×138(D)mm
Weight:	3.3kg

FAQ

Ftth Fiber Cable Tool Device DVP 740 750 760 Fusion Splicing Machine optical fusion splicer

Advantage

--Advantage we have:

A: Experienced fiber optic product supplier

B: professional technology term and sales department for your service.

C: Alibaba golden supplier, factory recognized by CE

D:All the question will be dealed within 24 hours.

--Benefit you get:

A: stable quality- coming from good material and technology

B: lower price: not cheapest but the lowest at the same quality

C: good service: satisfactory service before and after sale.

whatsapp:+8615797626358

Ftth Fiber Cable Tool Device DVP 740 750 760 Fusion Splicing Machine optical fusion splicer Images
